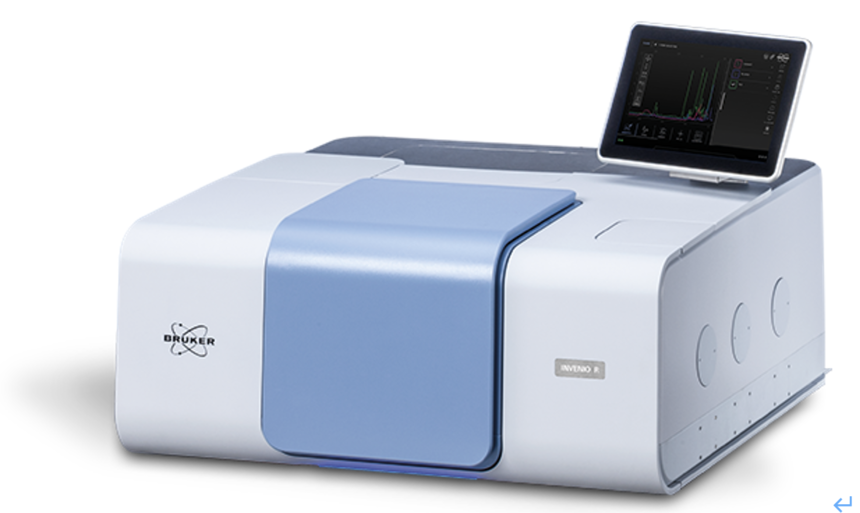

The INVENIO is a robust, 24/7 work station with features designed to enhance your productivity. Know that you can always trust your results thanks to smart software monitoring and the RockSolidTM interferometer, which is resistant to vibration and thermal effects.
Save time and always have two experimental set ups ready with the TransitTMfeature, an independent second measurement channel with its own detector for ATR or transmission measurements. The main sample compartment can accommodate numerous accessories to analyze nearly anything. Even the bulkiest accessories can be easily inserted thanks to the lock and release button on the Quicklock accessory mount.
Swapping optical components for different experiments is also easily accomplished, but uninterrupted analysis can be performed with Bruker FM which can analyze both MIR and FIR at the same time in either sample compartment without changing anything.
INVENIO Features
Spectral range expansion from FIR to UV/VIS
Up to 7 software controlled detectors
Spectral resolution down to < 0.085 cm-1
Time resolved spectroscopy down to the nanosecond timescale
Second sample compartment for two parallel set ups
Simultaneous FIR/MIR measurements
Accepts any sampling accessory with quick swappable mount
Intuitive software with guided workflows
INVENIO Extension Options
3 output and 2 input ports
FT-IR imaging and microscopy
High throughput measurements
Protein analysis in water
Thermogravimetric analysis
FT-Raman
Photoluminescence
External sample compartments, and more!
Quality. Precision. Functionality.
The INVENIO features a new, high quality design from the precise optics and novel beam path to the durable outer casing. You'll see every spectral detail thanks to the high signal-to-noise ratio and spectral resolution < 0.085 cm-1.
But the INVENIO doesn't just offer high spectroscopic precision, it's also highly functional. Take advantage of the DigiTectTM slot to easily insert a detector of your choice, e.g. LN2 cooled. Add up to 5 more room temperature or thermostabilized detectors with MultiTectTM, the 5-in-1 automated detector unit. Between the MutiTectTM detectors, the DigiTectTM slot, and the Transit channel, the INVENIO allows for up to seven internal, software controlled detectors.
The upgraded INTEGRALTM interferometer, with an automated three position beam splitter changer, is perfect to go alongside MultiTectTM. This allows for a fully automated, single click analysis of the entire spectral range from 28,000 cm-1 down to 15 cm-1. No need to ever manually change optical components.
