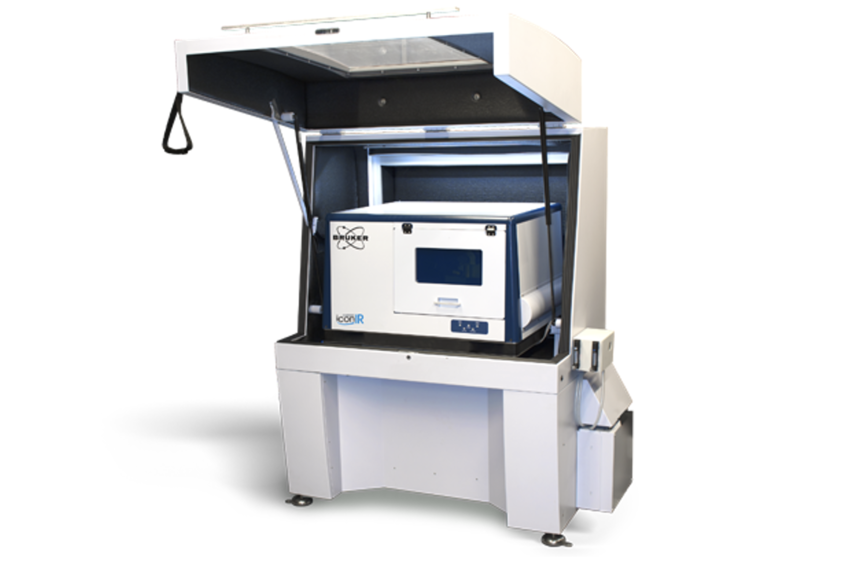

Dimension IconIR:Photothermal AFM-IR for ultimate versatility in materials research and industrial R&D

Dimension IconIR™ system combines nanoscale infrared (IR) spectroscopy and scanning probe microscopy (SPM) on one platform to deliver the most advanced spectroscopy, imaging, and property mapping capabilities available for academic researchers and industrial users. Incorporating decades of research and technological innovation, IconIR provides unrivaled performance based on and building off the industry-best AFM measurement capabilities of the Dimension Icon®. The system enables correlative microscopy and chemical imaging with enhanced resolution and monolayer sensitivity, while its unique large-sample architecture provides ultimate sample flexibility for the broadest range of applications. For example, the new IconIR polymer solution is an all-in-one package designed to include everything one would need to address key polymer research needs.

The Dimension IconIR platform has the highest performance in the world for AFM-IR measurements, leveraging advancements in IR laser sources, system designs, and operating modes. Read the application note "High-Performance Nanoscale IR Spectroscopy and Imaging with Dimension IconIR" to learn more.

In a single system, IconIR provides the highest performance for nanoscale infrared spectroscopy, chemical imaging resolution, and monolayer sensitivity.

Dimension IconIR delivers:

l  High-performance nanoIR spectroscopy with accurate and repeatable FTIR correlation, <5 nm chemical resolution, and monolayer sensitivity

l  Correlative chemical imaging with PeakForce Tapping® nanomechanical and nanoelectrical modes

l  Highest Performance AFM imaging and unmatched sample flexibility with large-sample accommodation*

l  The broadest available range of coordinating applications accessories and AFM modes, including the new Surface Sensitive AFM-IR Mode

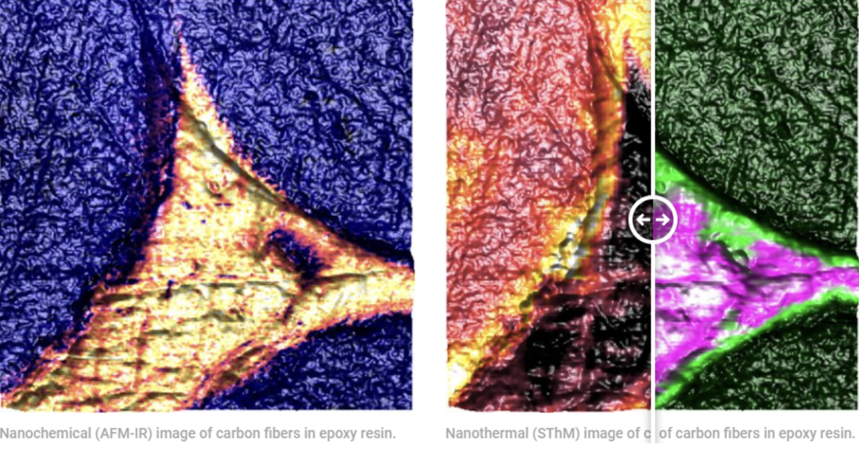

Most Complete Correlative Microscopy

Together with Bruker-exclusive PeakForce Tapping nanoscale property mapping and proprietary nanoIR spectroscopy technology, the Dimension IconIR system's large-sample platform is uniquely well-suited for correlative studies of materials and active nanoscale systems in electrical or chemically reactive environments—even complex systems with strong mechanical heterogeneities.

IconIR delivers:

l  Advanced quantitative property mapping techniques

l  The most complete correlative microscopy solution for quantitative nanochemical, nanomechanical, and nanoelectrical characterization

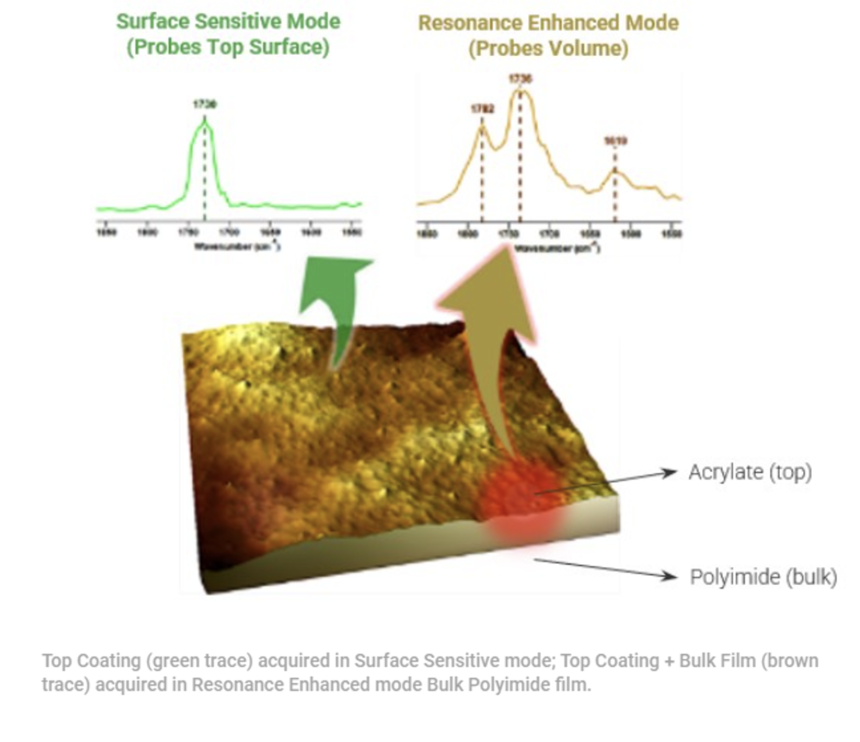

Chemical Insights Into the Very Top Surface Layer

Utilizing Bruker’s new patented Surface Sensitive AFM-IR Mode, IconIR significantly decreases chemical probing depth from greater than 500 nanometers to tens of nanometers, while eliminating the need for cross-sectioning to seamlessly combine high spatial resolution and high surface sensitivity chemical imaging.
